Zener Diode As A Voltage Regulator Pdf. 1) what does a voltage regulator do? There are two kinds of zener controlled transistor voltage regulators.
1N4749A DIODES Datasheet pdf ZENER DIODES. Equivalent from datasheetspdf.com
Zener diodes are rated by their breakdown voltage v z and maximum power p z (typically 400mw or 1.3w) This silicon semiconductor is made to work in a reverse bias environment. It provides, among other useful functions, a constant voltage reference
There Is A Typical Flow Of Current From Anode To Cathode In A Zener Diode.

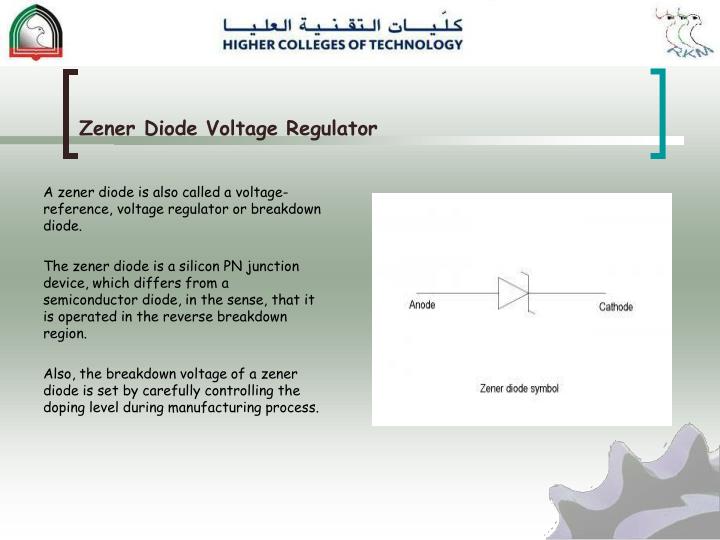

The stabilized output voltage is always selected to be the same as the breakdown voltage v z of the diode. Zener diode definition a zener diode is a type of diode that permits current to flow in the forward direction like a normal diode, but also in the reverse direction if the voltage is larger than the breakdown voltage known as zener knee voltage or zener voltage. A zener controlled voltage regulator is used when the efficiency of a regulated power supply becomes very low due to high current.
Placing The Zener Diode In Parallel With The Load As Shown In Figure 3.39 (Reproduced To The Right) Ensures An Essentially Constant Output Voltage Even Source Voltage May Vary.

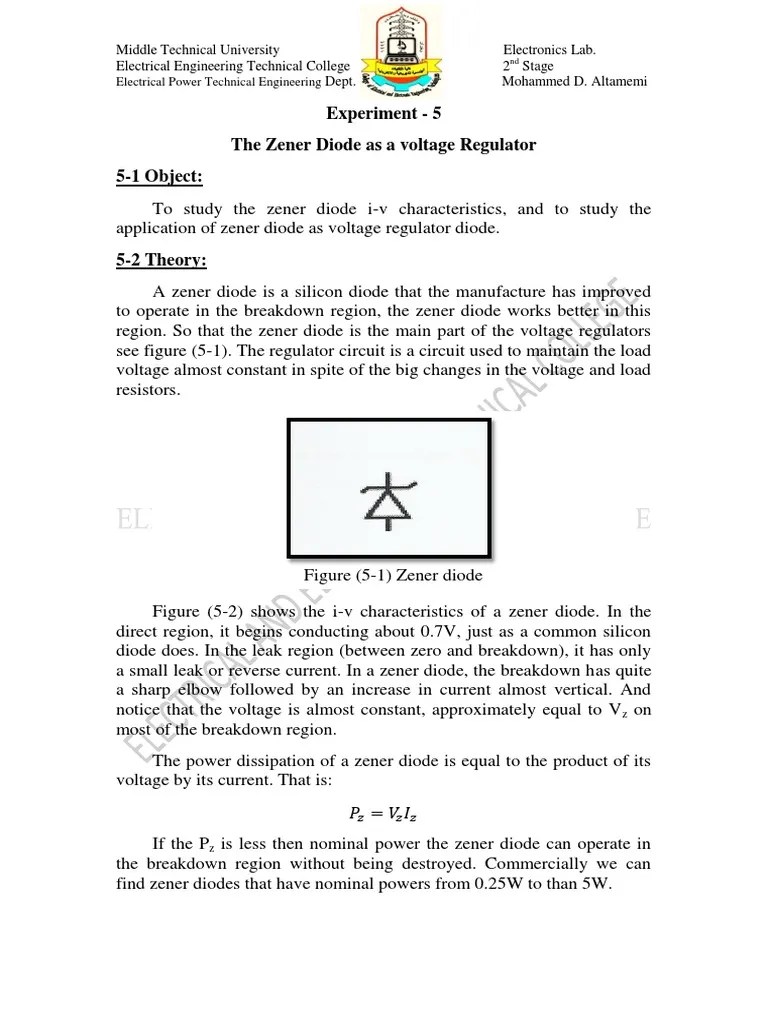

The zener voltage regulator consists of a current limiting resistor r s connected in series with the input voltage v s with the zener diode connected in parallel with the load r l in this reverse biased condition. Zener diode, resistor, rheostat, voltmeter, ammeter, dc source and bread board. To design a circuit using zener diode so that it gives output voltage of 12v at the output.
The Breakdown Potential, Also Called The Zener Potential I.e V Z ≈ 6.30V.
The zener diodes have a voltage rating equivalent to the intended output voltage, that may be closely match the desired output value. Zener controlled transistor series voltage regulator such a circuit is also named an emitter follower voltage regulator. Assume the zener voltage of the diode is 4.7 volts and its forward bias voltage is 0.7 volts.

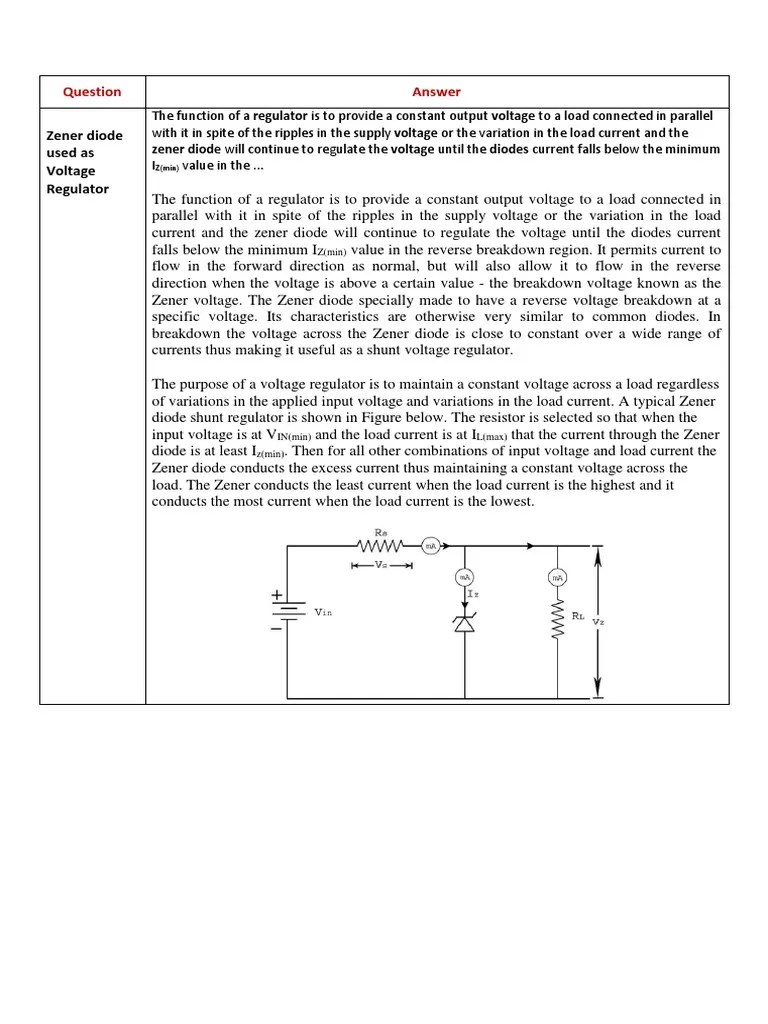

Probably The Simplest Type Of Voltage Regulator Is The Zener Shunt Stabilizer, Which Works By Using A Basic Zener Diode For The Regulation, As Demonstrated In Figure Below.
A semiconductor diode blocks current in the reverse direction but will suffer damage if the reverse voltage applied across becomes too high. Zener diode, resistor, variable dc power supply, milliammeter, voltmeter, rheostat and wire. Zener diode is used as a shunt voltage regulator for regulating voltage across small loads.
1) What Does A Voltage Regulator Do?
It is called so because the The breakdown voltage of zener diodes will be constant for a wide range of current. But zener diode is specially designed to operate in the reverse breakdown region.
