L200 Voltage And Current Regulator. This circuit is designed to solve the problem that occurs when the input or output voltages are higher than the device can produce. Lm317 (lm150, lm350,) current regulator;

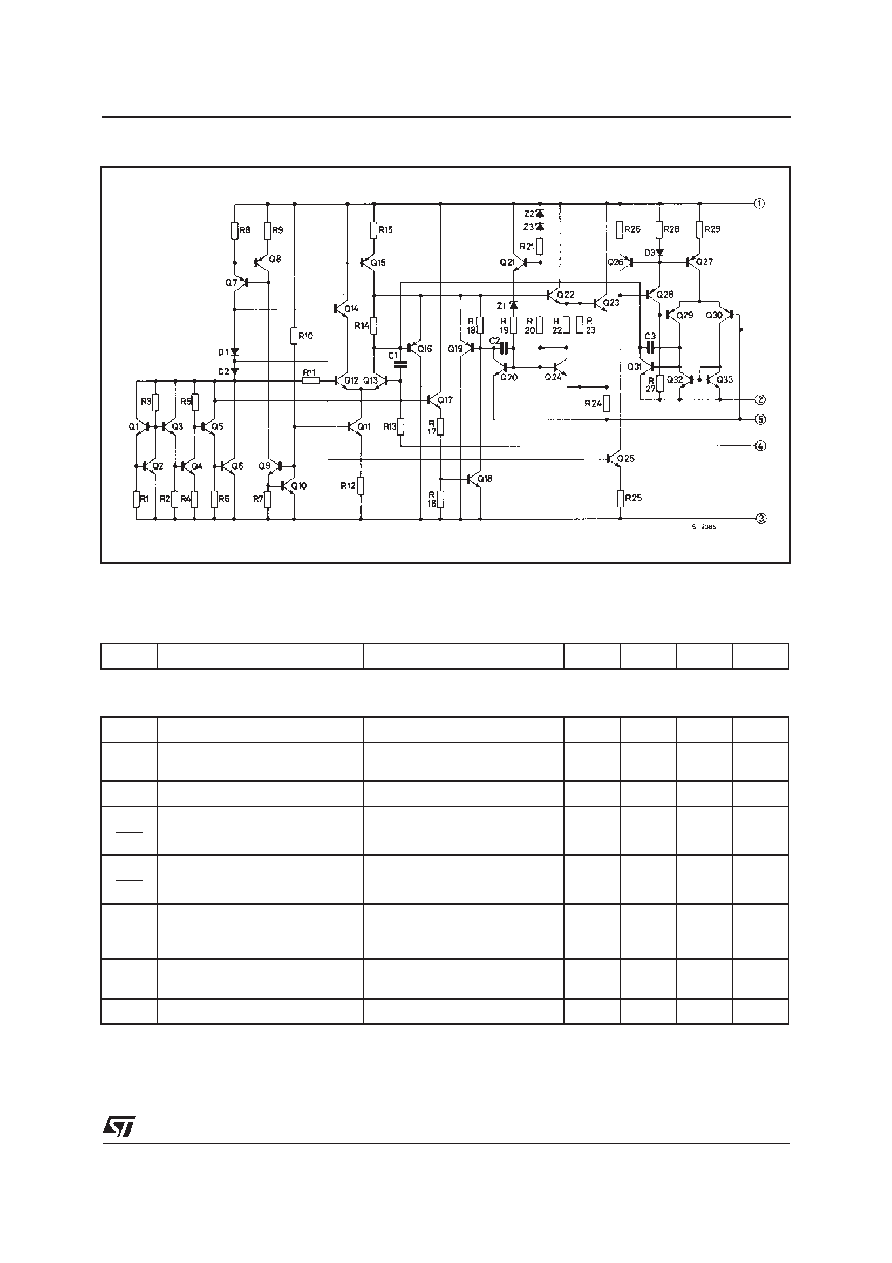

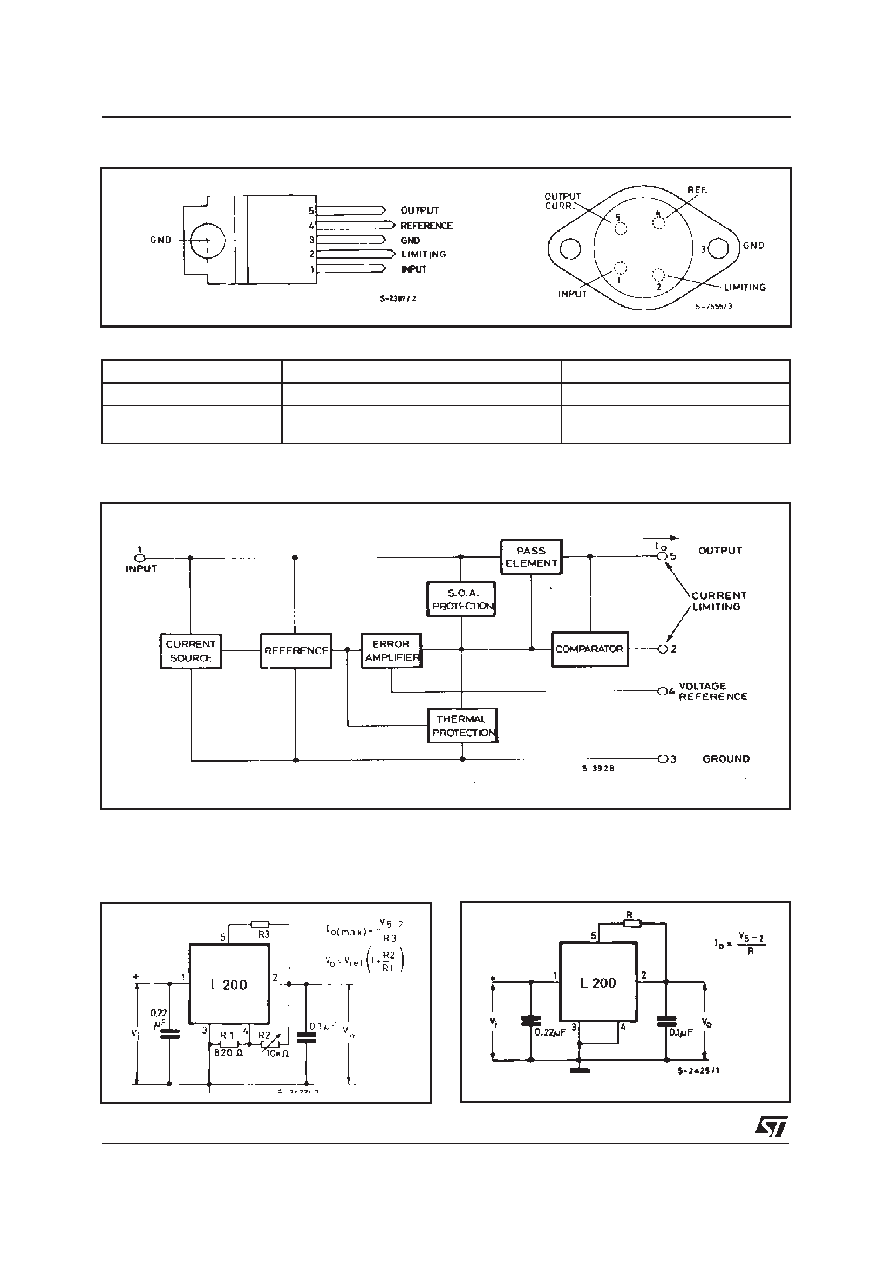

L200 datasheet(7/12 Pages) STMICROELECTRONICS ADJUSTABLE from html.alldatasheet.fr
Stmicroelectronics, alldatasheet, datasheet, datasheet search site for electronic components and semiconductors, integrated circuits, diodes, triacs, and other semiconductors. When the load is 1a it has a drop of 0.1v. The l200 regulator has many versions;
For 10Ms Output Voltage Range:

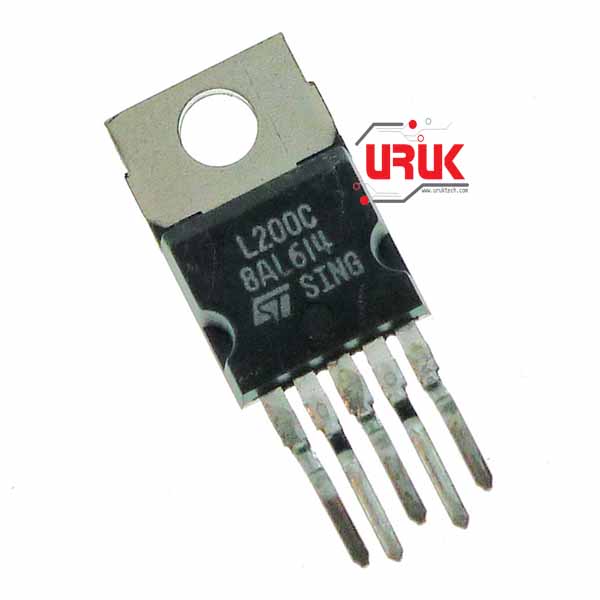

The l200 is a 2a regulator. Theoutput voltageisfixed with two resistors or, if a continuously variable output voltage is required, with onefixedand onevariable resistor. The ic also features thermal shutdown and input over voltage protection up to 60 vdc.
I Have Attached L200 Schematic Which Is Programmable Voltage And Current Regulation.
The l200 is a positive variable voltage regulator which includes a currentlimiter and supplies up to 2 a at 2.85to 36 v. Stmicroelectronics, alldatasheet, datasheet, datasheet search site for electronic components and semiconductors, integrated circuits, diodes, triacs, and other semiconductors. The above schema has current limiting of 1 amp, hence rsc = 0.45 ohm.
The Transistor Is Used To Absorb The Excess Voltage When There Are High Input Voltage.
When the load is 1a it has a drop of 0.1v. 2.85 to 36v output current range: L200 voltage and current regulator;
Lm317 (Lm150, Lm350,) Current Regulator;
Age and current programmable regulation. The l200 is a monolithic integrated circuit for voltage and current programmable regulation. The l200 can be used to replace fixed voltage regulators when high output voltage precision is required and eliminates the need to stock a range of fixedvoltageregulators.
Here The Regulator Is Designed To Produce An Output Adjustable Between 2.85V To 15V At 1A.the Resistors R1 And R2 Determines The Output Voltage.
This is where q1 and q2 come in. The voltage can be set to the values of two external resistors in range from. The l200 is a positive variable voltage regulator which includes a current limiter and supplies up to 2 a at 2.85 to 36 v.
